For most events and venues, I’m currently using a Bose L1 Pro16 PA system. I have additional and other systems available if the need arises. Below is my current pedalboard and equipment list:

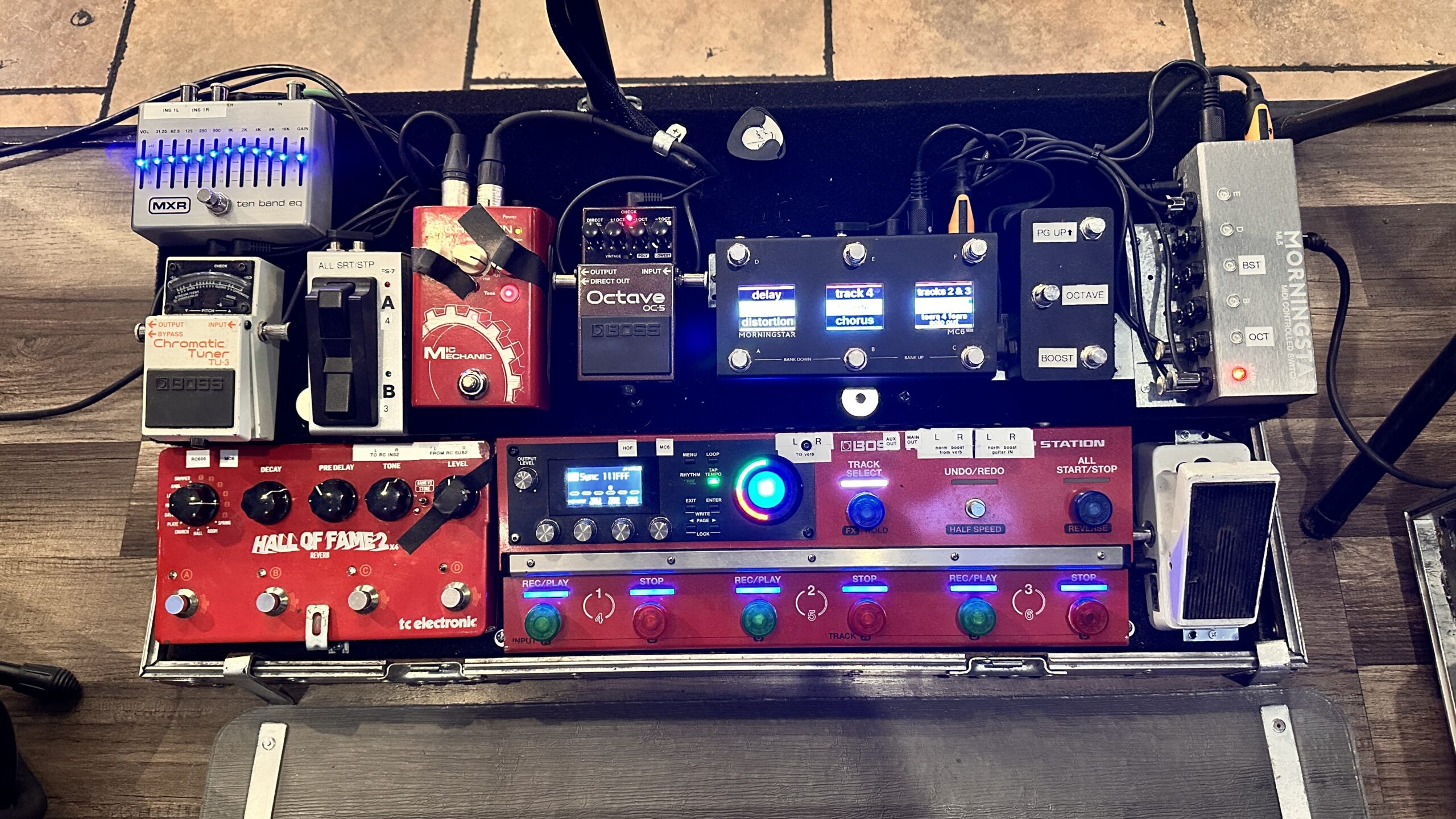

Pedalboard & Live Signal Chain

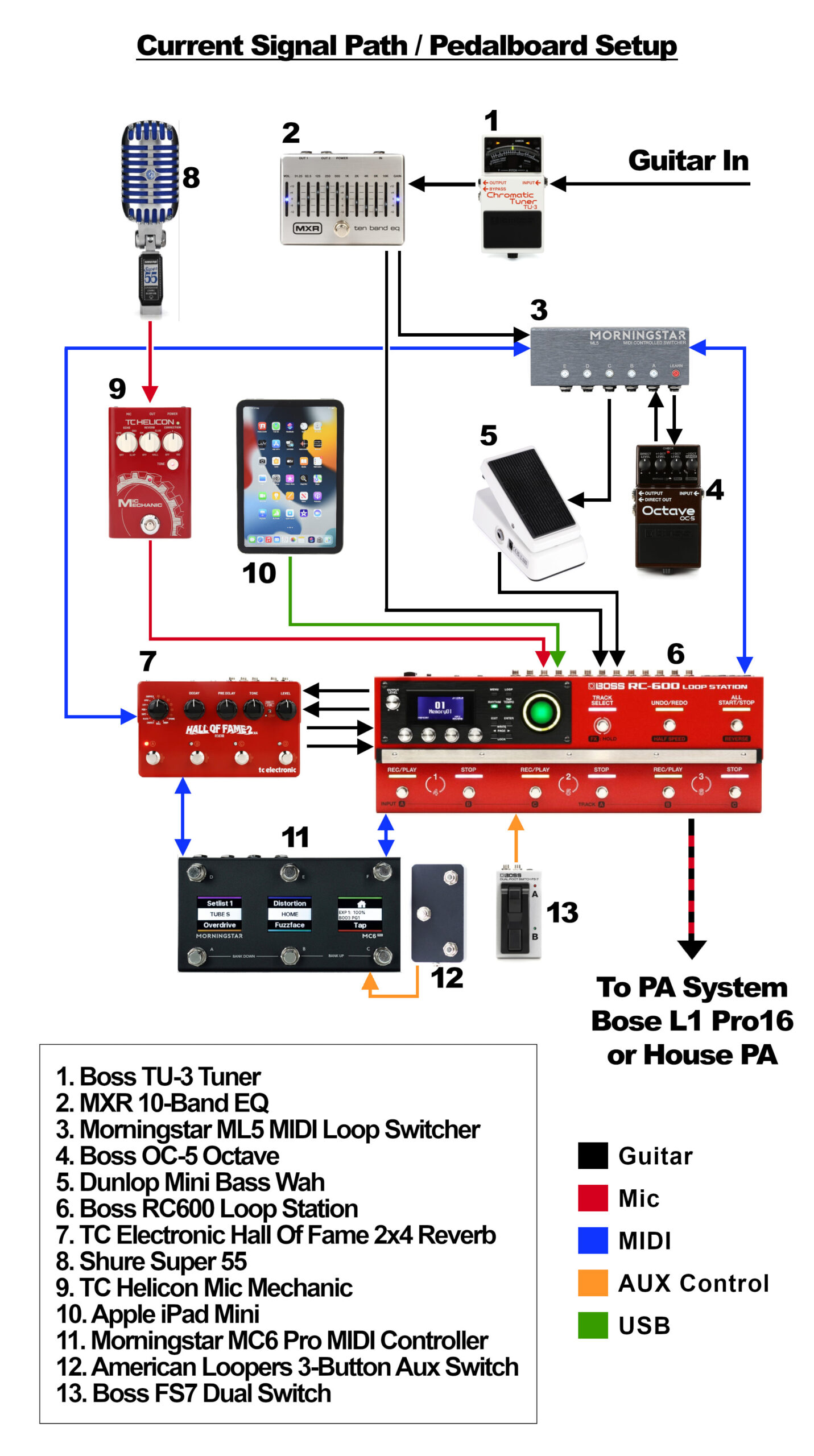

For those that are interested in the geeky stuff, here’s my current signal chain & pedalboard configuration for live performances. The new Boss RC600 Loop Station is a powerhouse, and actually acts as the mixer for my setup. Guitar and Mic are mixed in the Loop Station itself, and the output is sent directly to the Bose L1 Pro16 Loudspeaker System (and/or house sound).
I run a “split signal” setup, where the MXR 10-Band EQ takes my one guitar signal and splits it into two. I then use those signals as separate inputs to the looper, which gives incredible flexibility for having varied tones. Normally, the second guitar signal is used as a simple boost for solos, etc. But occasionally I’ll use it to add subtle underlying effects or as another tone layer underneath the main sound. The possibilities are basically endless.
- Emerald X10 Guitar w/LR Baggs Anthem StagePro pickup system
- Boss TU-3 Tuner
- Boss OC-5 Octave (modified for MIDI control with Oscillator Devices “IMP”)
- MXR 10-Band EQ (hidden under board)
- Dunlop Mini Bass Wah
- LiveWire DI (for bass-only signal from OC-5)
- Boss RC600 Loop Station
- TC Electronic Hall Of Fame 2×4 Reverb
- Morningstar MC6 Pro MIDI Controller
- American Loopers Aux3 (adds extra switches to MC6 Pro)
- Pedalnetics Flat Front Aux3 (adds extra switches to MC6 Pro)
- iPad Mini (mounts to mic stand)
- Shure Super 55 Microphone
- TC Helicon Mic Mechanic
- Bose L1 Pro16 PA system

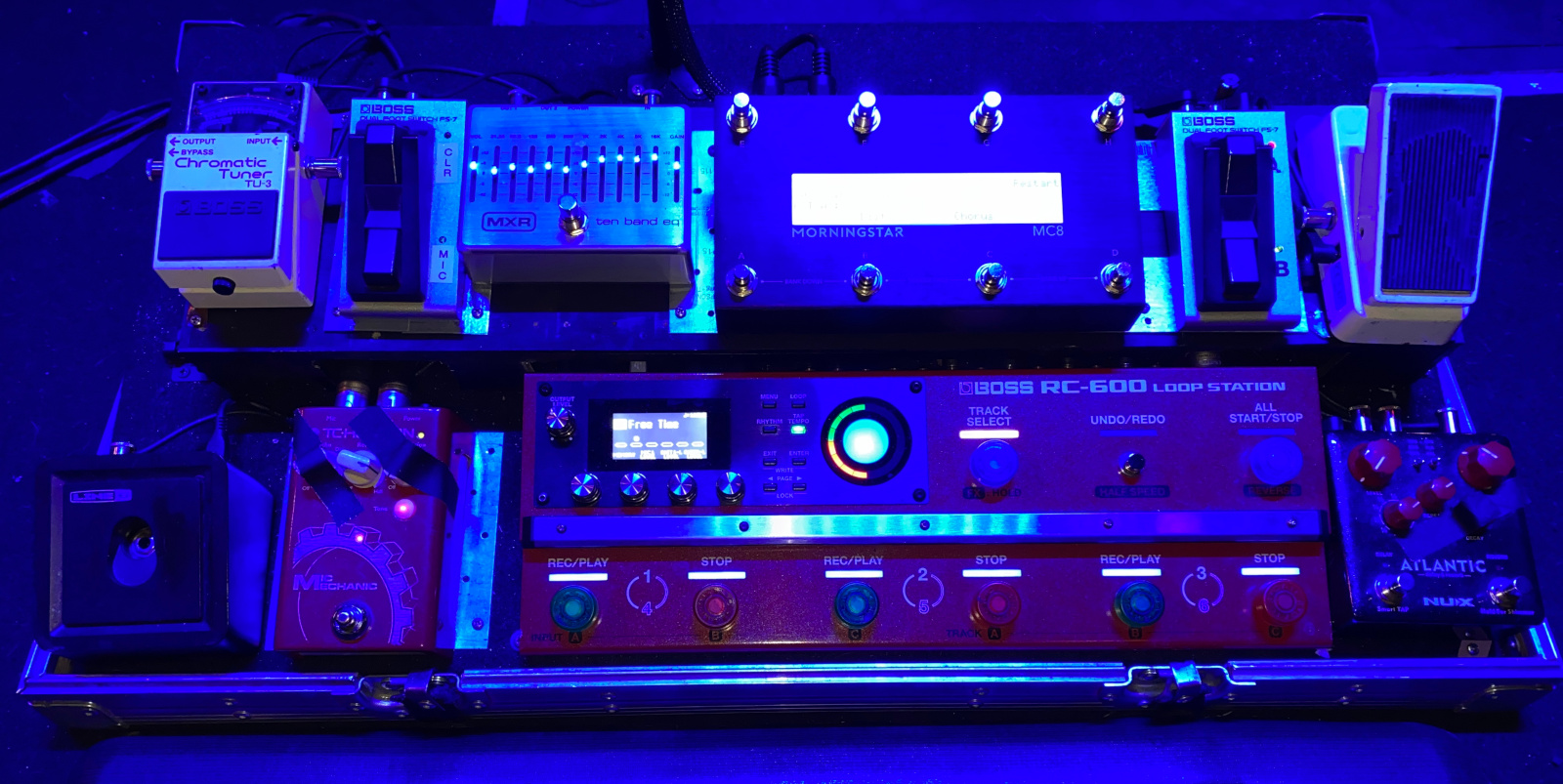

It’s all housed in a custom-built (by me) road case, with integrated power. The whole board is powered by a single computer-style IEC power cord. My latest rendition includes two spacious storage compartments for cables and spares, and my mic stand is also integrated into the board. You can see the attachment point between the storage boxes. I just set it down, plug it in, connect my guitar and PA with one cable each, and I’m ready to go.
